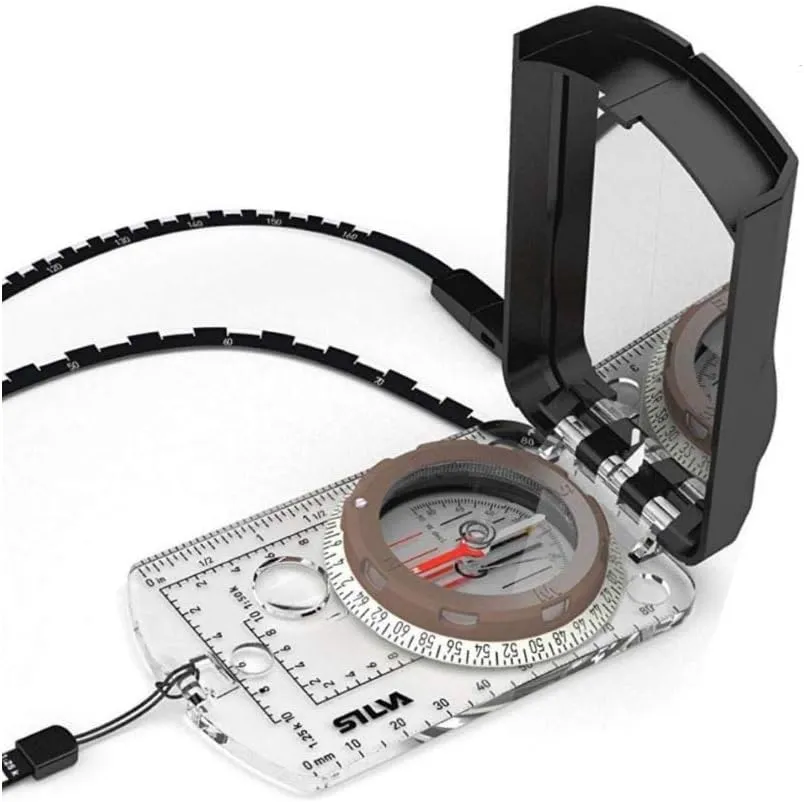

The sighting compass for experienced navigators – used by NATO Forces around the world. Mainly used by the infantry as a soldier’s or officer’s compass. Additional features include measuring scales for positioning (GPS), graduation in mils and degrees (6400/360), integrated adjuster for magnetic declination, magnifying lens and rubber feet for precision map work. The compass has a luminous graduation ring and markings for compass reading in the dark. Once activated by daylight/flashlight it will give light up to 4 hours of light. The included scale lanyard and slope card makes it easier to quickly make a distance judgement of your route or to plan your route in advance.

Accuracy : ± 1° (17.8 mils)
Altitude use : 5000m @-15 °C
Clinometer : Yes
Declination adjustment : Yes
Graduation : 6400° / 360°
Illumination : 4 hours after activation in light
Impact resistance : 30g in XYZ directions and free fall from 1.5 m height into gravel
Magnifying lens : Yes
Material : Acrylic/Acetal, PC/ABS, TPU
Patented red/black N/S lines in capsule: Yes
Resolution degrees / mils : 2 / 50
Scales : mm, inch
Settling time from 90° angle to complete rest : 5 sec
Settling time from 90° angle within ± 3° : 2.7 sec
Sighting System : Mirror sighting
Silicon friction feet : Yes
Size : 108x64x20
Temperature operating range : -30 to 60 C
Type of compass : Baseplate, Silva 1-2-3 System Mirror sighting compass
UTM position plotting scales (Romer scales) : 1:25k, 1:50k
Variant : Magnetic Equator, Magnetic North, Magnetic South
Water resistance : Waterproof
Weight : 86g

• Is Discontinued By Manufacturer ‏ : ‎ No
• Product Dimensions ‏ : ‎ 4.25 x 2.52 x 0.04 inches; 3.03 ounces
• Date First Available ‏ : ‎ March 23, 2018
• Manufacturer ‏ : ‎ Silva
