- Glass & Coatings - Made with B270 sodium-calcium optical glass(OG), ion-assisted fully multi-coatings, and up to 90% light transmission, provides excellent color fidelity, brightness, clarity, and detail resolution in most environments
- Construction & Technology - Constructed with 6061 T6 aircraft-grade aluminum alloy for a stable, durable, and lightweight structure, matte black anodized finish enhances appearance and wear resistance, nitrogen filling prevents fogging, and advanced design and assembly processes ensure excellent shock resistance and waterproof performance

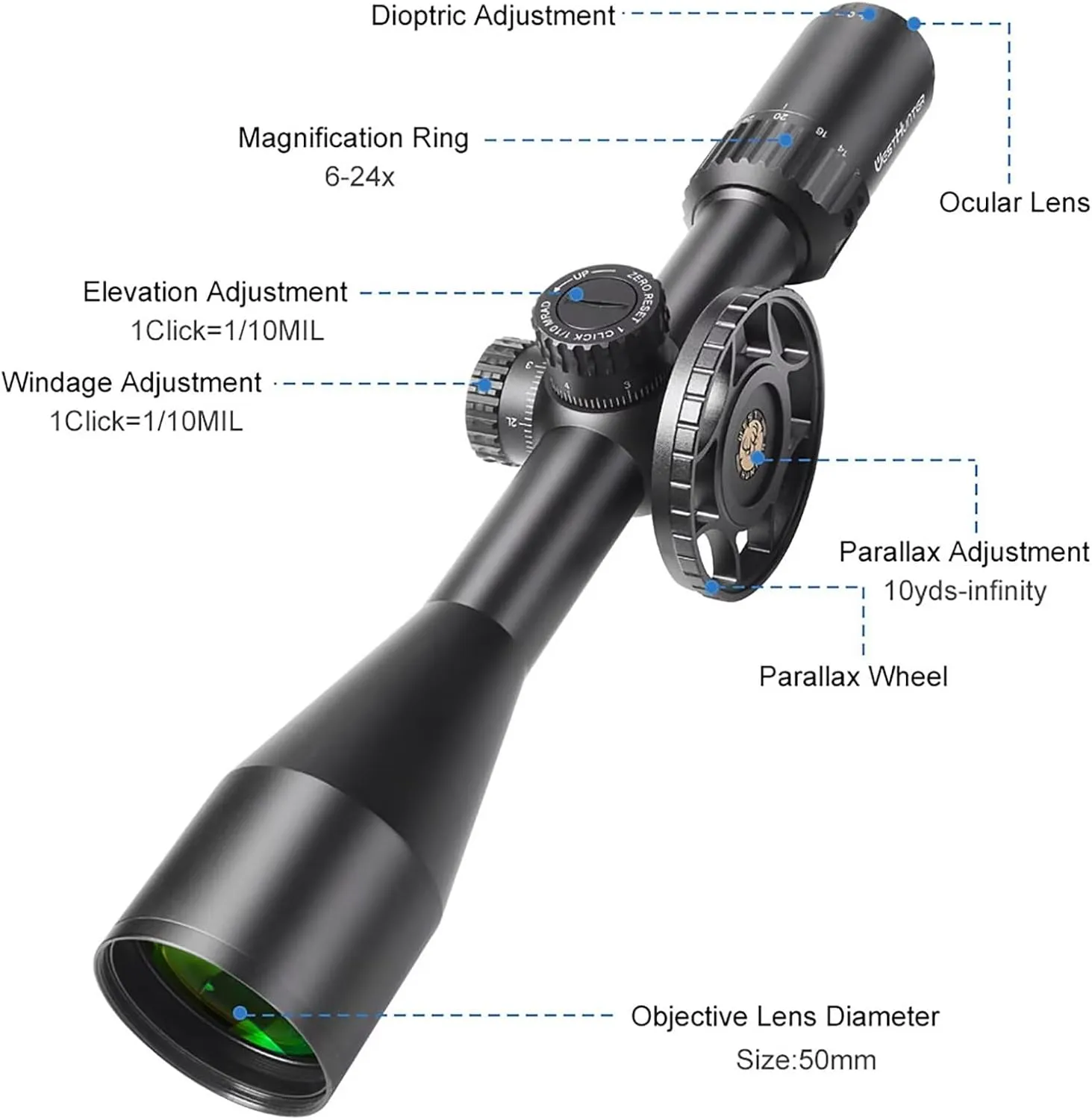

- Main Parameters - Offers parallax adjustment down to 10 yards, 50 MOA of elevation/windage travel, 105 mm-100 mm long eye relief, wide field of view 18.3-4.6 feet (@100yds), and 1/10 MIL precision turret adjustment

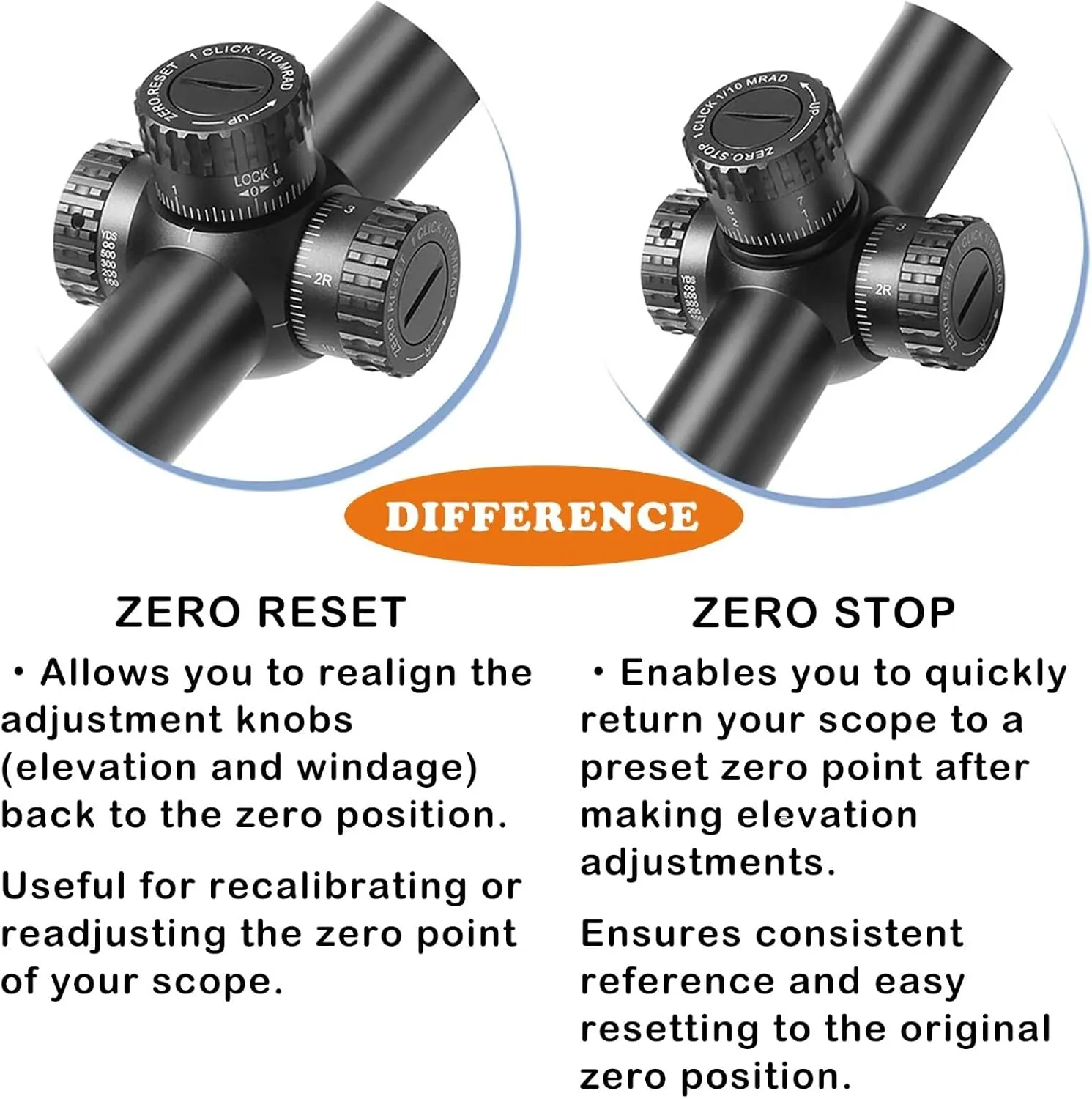

- Zero Reset Turret - Featuring capped quick-reset turrets with stretch lockdown, finger adjustable with 1/10 MIL crisp audible clicks that will be able to quickly reset to zero after sighting in
- As an entry-level precision shooting scope, its remarkable cost-effectiveness will pleasantly surprise you, whether you need a reliable shooting partner or want to upgrade your optics, HD GEN2 is an impeccable choice
Detailed Specifications:
Brand: WestHunter

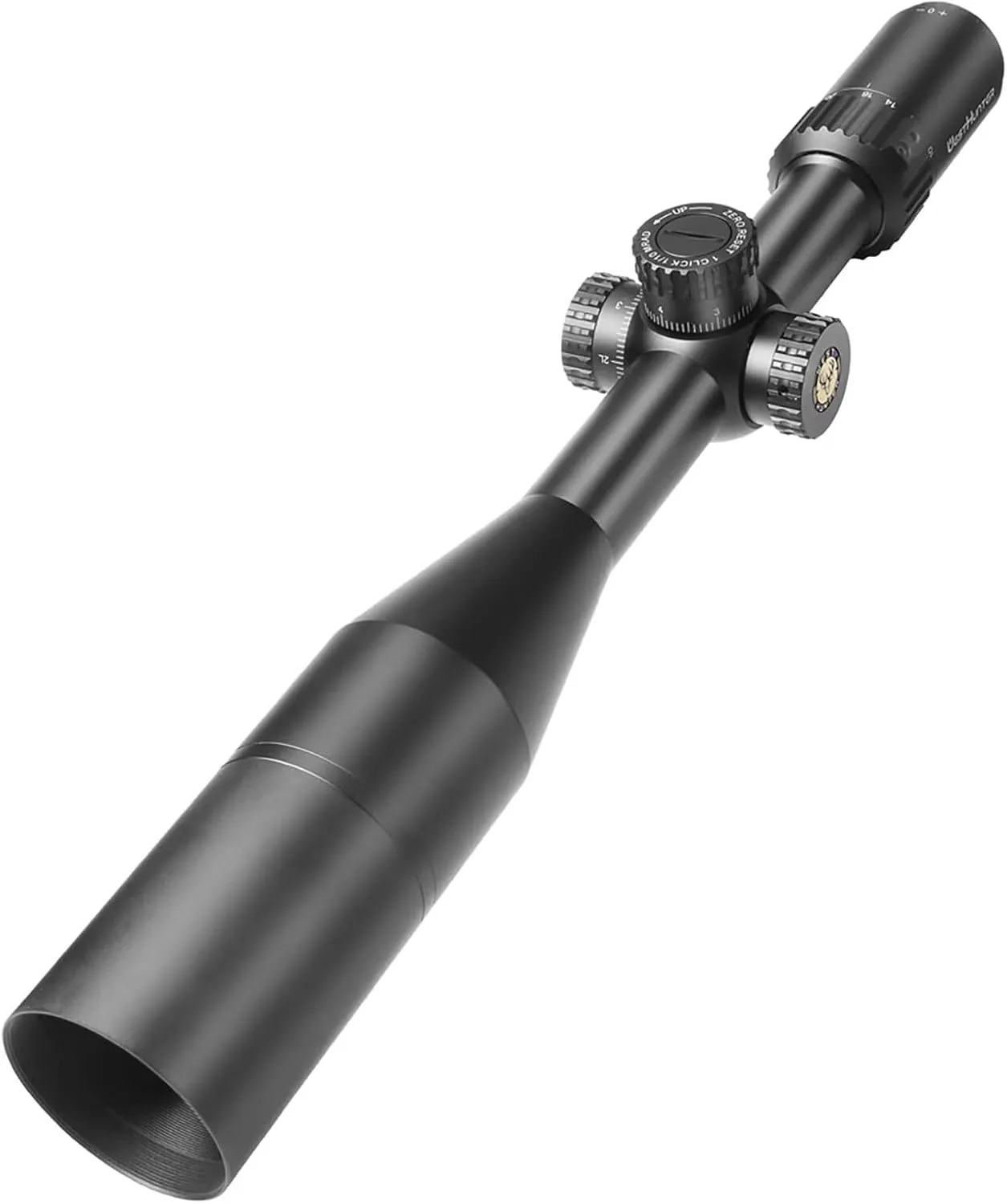

Model Number: HD GEN2 6-24X50 FFP
Magnification: 6-24x

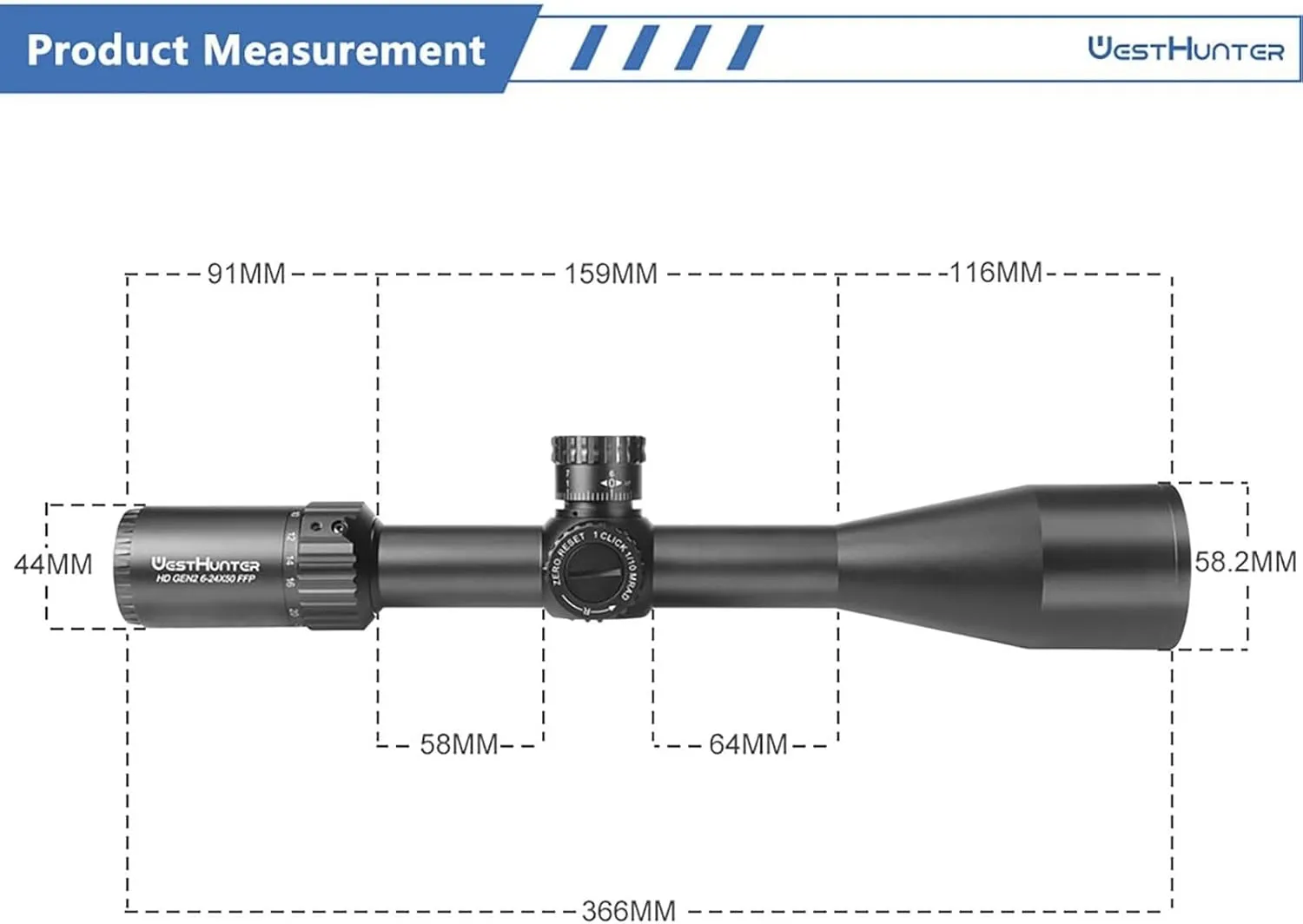

Eyepiece Lens Diameter: 35 mm/1.38 in
Eyepiece Tube Diameter: 44 mm/1.73 in
Objective Lens Diameter: 50 mm/1.97 in
Objective Tube Diameter: 58.2 mm/2.29 in
Length: 366 mm/14.4 in
Weight: 744 g / 26.2 oz(Zero Reset) or 760 g / 26.8 oz(Zero Stop)
Tube Diameter: 30 mm/1.18 in
Focal Plane: First Focal Plane
Illumination: No
Click Value: 1/10 MIL
Exit Pupil: 8.3 mm - 2.1 mm/0.33 in - 0.08 in
Eye Relief: 105 mm - 100 mm/ 4.13 in- 3.93 in
Field of View (100yds): 18.3-4.6 feet
Field of View: 3.5°-0.86°
Elevation/Windage Range: ≥50 MOA
Parallax Adjustment: 10yds to Infinity
Optics Coating: FMC(Fully Multi-coating)
Range of Dioptric compensation /- dpt: 2
Surface Treatment: Matte Black Anodizing
Range of Function temperature (Unit can still be operated): -25°C/ 55°C
Storage temperature: -40°C to 85°C
Change of impact point after change of magnification (MOA): 1
Fast Focus Eyepiece: Yes
Nitrogen Filled: YES
Shockproof/Waterproof/Fogproof: YES
